Best Garden Irrigation System UK: A Practical Design Guide
The best system is a matched set of zones
For most mixed UK gardens, the best irrigation system is drip or micro irrigation for beds, containers and greenhouse crops, divided into separately timed zones. A sprinkler remains useful for a lawn or establishment watering, while a watering can is often better for a few pots or targeted rescue watering.
There is no single kit that is best for every garden. Choose the delivery method after mapping plants, measuring tap flow and deciding who will maintain filters, batteries and winter storage.
| Garden job | Sensible starting method | Main reason |
|---|---|---|
| Patio pots and hanging baskets | Individual drippers or short micro line | Precise delivery to small compost volumes |
| Raised beds and vegetable rows | Pressure-regulated drip line | Even root-zone application along a fixed run |
| Greenhouse tomatoes | Individual drippers with a dedicated schedule | Consistent moisture without routinely wetting leaves |
| Established border | Drip line or soaker hose after testing | Slow application over a planted area |
| Lawn | Movable sprinkler used only when needed | Covers an open area; should not share a pot schedule |
| A few vulnerable plants | Watering can | Maximum control with almost no infrastructure |
Start with a zone map, not a shopping basket
Walk the garden and group plants by four factors:
- root environment: container, grow bag, raised bed or open soil;
- exposure: greenhouse, full sun, shade or wind;
- delivery method: dripper, line, soaker hose or sprinkler;
- watering rhythm: short and frequent, or slower and less frequent.
Draw each group from the outside tap. Measure the route rather than estimating it. Include the vertical rise, sharp corners, doors, paths and places where a connector can be inspected.

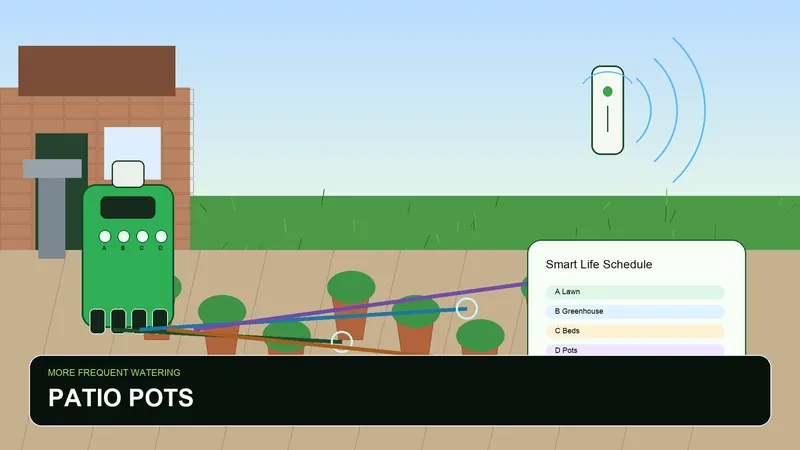

Do not place lawn, greenhouse tomatoes and baskets on one schedule. They may all look dry on a hot afternoon, but they store and lose water differently.
Measure what the tap can supply
Bucket-flow test
Open the tap fully and time a 10-litre container. Calculate:
flow in litres/minute = container litres / elapsed seconds x 60
Repeat with the intended timer or splitter attached. The difference is more useful than a pressure claim alone because filters, valves, hose length and fittings all restrict usable flow.
Never assume four outlets should run simultaneously. Sequential operation gives each line the full available supply and makes fault finding much easier.
Check pressure against every component
Read the minimum and maximum operating pressure for the timer, pressure regulator, drip line and emitters. A mains tap may need regulation before fine drippers. A gravity-fed water butt may not provide enough head to open an electronic valve or feed a long line evenly.
If the water source is a butt, test it at its lowest expected level. A system that works only when the container is full is not ready for unattended use.
Compare the main irrigation methods
Drip line
Drip line contains emitters at fixed spacing and applies water close to roots. It is well suited to straight rows and beds when plant spacing matches the line. Pressure regulation and filtration matter because small passages magnify pressure differences and grit.
The RHS notes that drip systems can deliver water slowly and directly to root zones. They still need inspection: a blocked final emitter can leave the far end dry while the start looks healthy.
Micro irrigation
Micro supply tube with individual drippers is flexible for pots, baskets and irregular planting. Each branch can reach a container, but every extra joint is a possible disconnection. Secure tube, use matched emitters and label the line before foliage hides it.
Soaker hose
A porous hose is simple for a border, but output can vary with length, pressure, slope and manufacturing tolerance. Run it above ground first and watch the full length. It should wet the intended soil without spraying paths or creating a saturated patch near the inlet.
Sprinkler
Sprinklers suit open areas such as lawn, but wind and evaporation can move water away from the target. Water early, avoid hard surfaces and do not use a sprinkler during a restriction that prohibits it. A sprinkler should normally be its own zone.
Watering can
Infrastructure has a maintenance cost. For a small number of containers or new plants, a watering can can be more accurate and easier to adapt than permanent pipework.
The component order for a dependable drip zone
A common arrangement is:
tap -> backflow protection where required -> timer -> pressure regulator -> filter -> mainline -> lateral -> emitter
Follow the instructions supplied with each product. A combined regulator/filter or a particular timer may specify a different order. Keep all serviceable components accessible; hiding a filter behind a planter guarantees it will be forgotten.
Flush the mainline before fitting emitters. Cap the ends only after debris runs clear. Then test the nearest and furthest outlets and compare their output.
For a raised-bed build, follow the detailed raised-bed drip installation guide.
When a tap timer improves the system
A timer is valuable when it controls a system that already distributes water evenly. It cannot repair poor pressure, a kinked hose or an unsuitable zone.
Choose the control level deliberately:
- one simple circuit may need only a countdown timer;
- two plant groups may suit a dual-outlet digital timer;
- three or four groups may justify a multi-zone controller;
- permanent valves and larger landscapes need a different irrigation-control design.

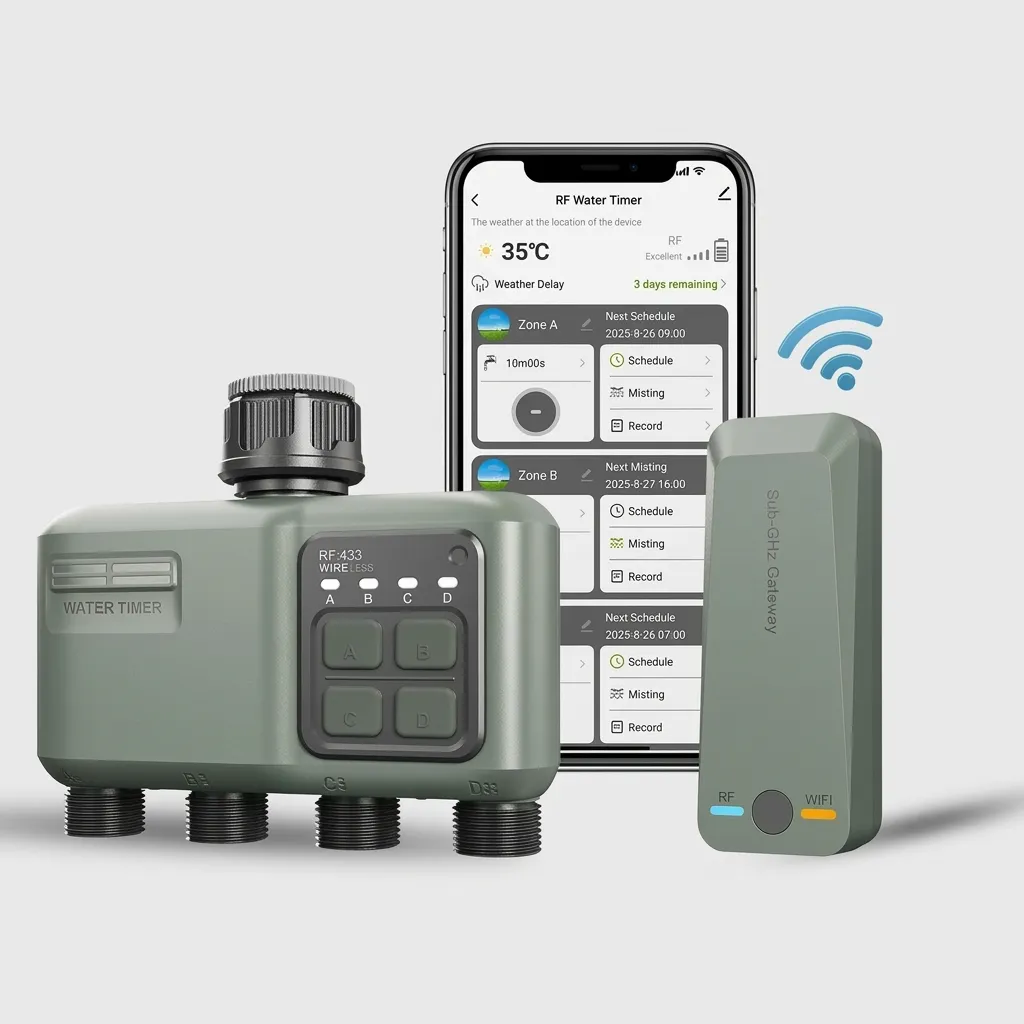

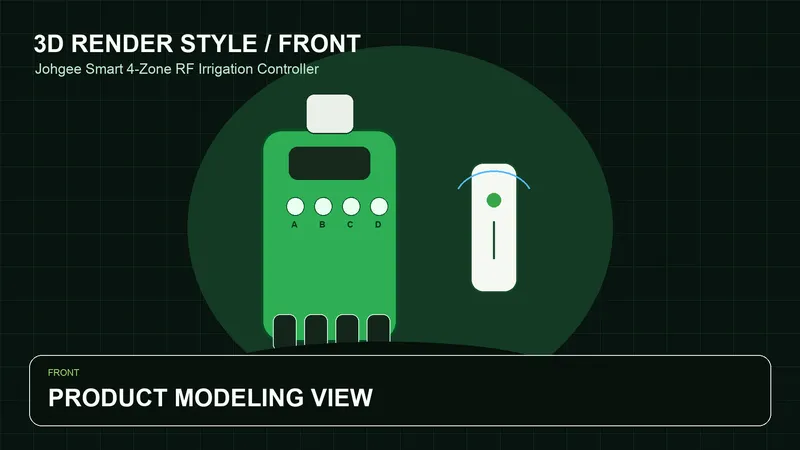

The UK water-timer comparison separates those categories. Johgee's four-zone RF timer is relevant when four schedules and an indoor gateway solve the actual layout, not merely because four outlets are available.
Set runtimes from observation
Manufacturer litres-per-hour figures provide a starting point, not a finished schedule. Place catch containers at representative emitters, run the zone for a known period and compare output. Then inspect moisture below the surface after water has had time to spread.
Adjust one variable at a time:
- runtime;
- frequency;
- emitter rate;
- number of emitters per plant;
- pressure-regulator choice;
- zone grouping.
If water pools or runs off, shorten the run or split it into soak cycles. If the far end remains dry, investigate flow and blockage before extending every runtime.
Seven-day commissioning plan
Day 1: fit and flush one zone; watch every connection.
Day 2: check the root area and compare near and far emitters.
Day 3: inspect after the first scheduled run rather than starting it manually.
Day 4: pause if rain has already supplied useful water.
Day 5: look for slow leaks with a dry tissue around the tap and valve body.
Day 6: check that every valve closes and the line does not continue under mains pressure.
Day 7: record the working layout, runtime and any unused outlet. Only then consider unattended watering.
UK seasonal maintenance
Spring is for replacing damaged washers, flushing lines and recommissioning schedules. Summer needs root-zone checks and weather adjustments. Autumn is for reducing programmes as growth slows. Before freezing conditions, isolate water, remove vulnerable tap-mounted equipment and store it according to its instructions.
Check current water-company restrictions before using mains-water hose systems. The hosepipe-ban checker explains how to find the supplier notice; a timer does not override it.
Field evidence from our garden
Sources and editorial record
Checked 16 August 2026. This revision replaces a repeated general-purpose timer template with a system-design method. Product compatibility must be confirmed against current instructions and an on-site flow test.
{}
